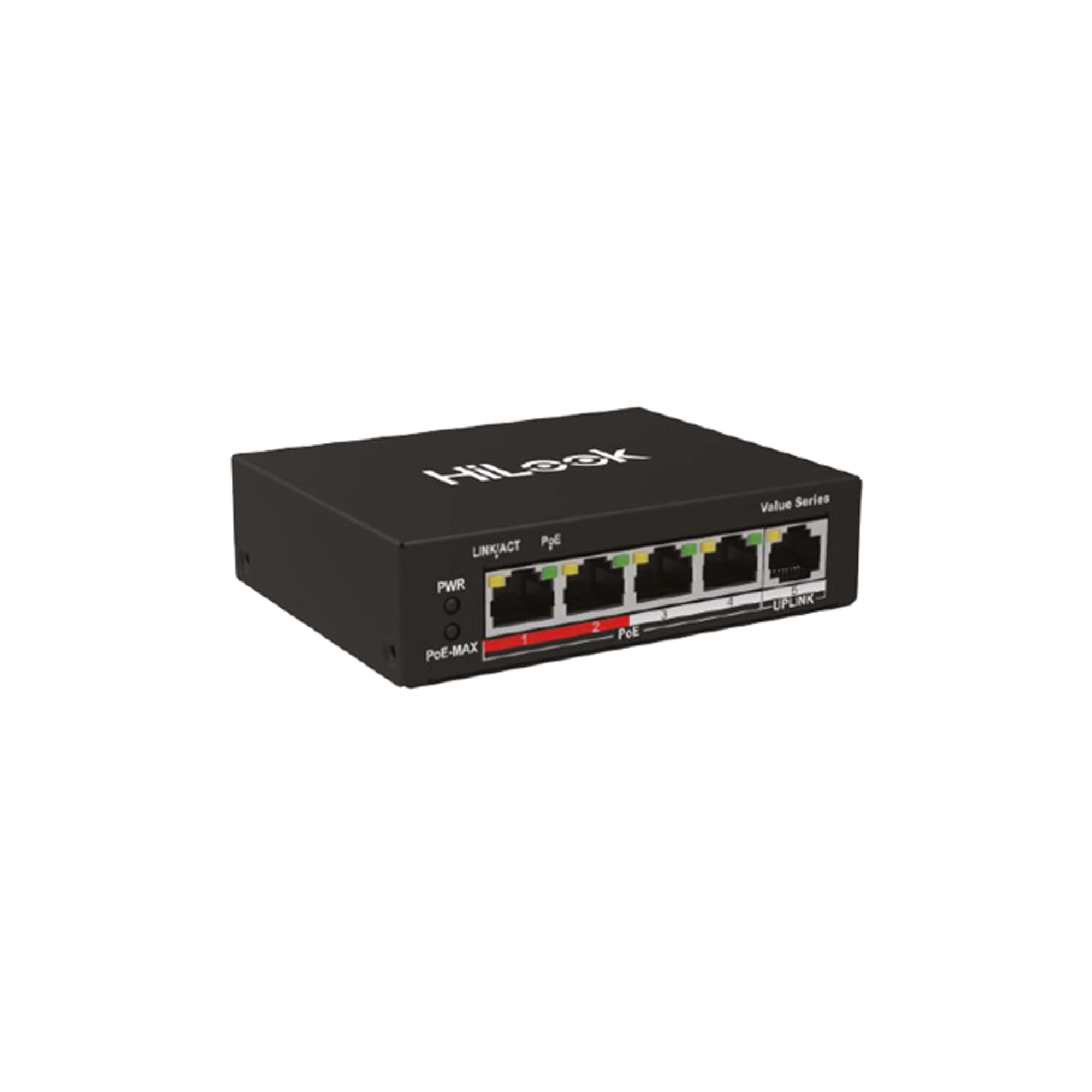

HiLook by Hikvision 4-PORT 100 MBPS LONG RANGE UNMANAGED POE



MODEL: HLNS-0105P-35



KEY FEATURES

• 4 × 100 Mbps PoE ports, and 1 × 100 Mbps
Ethernet port.
• IEEE 802.3at/af standard.
• IEEE 802.3, IEEE 802.3u and IEEE 802.3x standard.
• High priority ports.
• 8-core power supply.
• Up to 250 m transmission distance.
• 6 KV surge protection for PoE ports.
• PoE power management.
• 100 Mbps network access.
• Wire-speed forwarding and non-blocking design.
• Store-and-forward switching.
• Solid high-strength metal shell.
• Reliable fan-free design.



Focal Length

2.8mm
IR Range

up to 30m
Power Supply

12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3
Material

Metal & Plastic
Dimensions

Camera: Ø 112 mm × 81.4 mm (Ø 4.4” × 3.2”)
With package: 150 mm × 150 mm × 141 mm (5.9” × 5.9” × 5.6”)

NVR: 260 × 225 × 48 mm (10.2” × 8.9” × 1.9”)
Weight

Camera: approx. 400 g (0.9 lb.)
With package: approx. 600 g (1.3 lb.)

NVR: ≤ 1 kg (2.2 lb)
Datasheet
