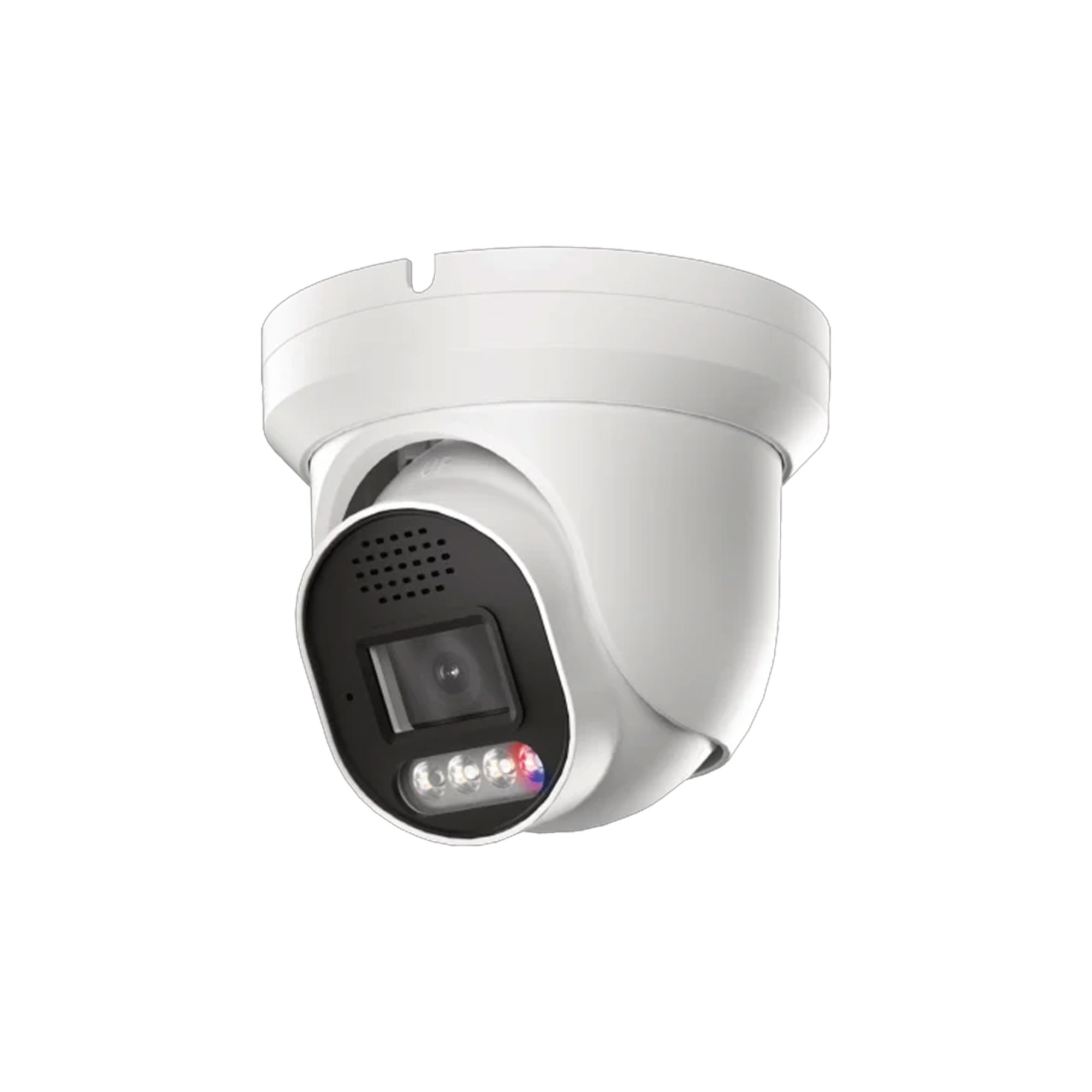

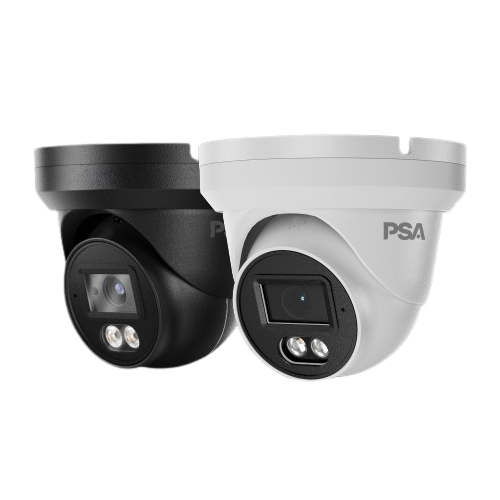

8MP Dual Light Active Deterrence
Turret Network Camera
Boost your security with PSA Centrii’s active deterrence turret with built-in audio & strobe light alarms to deter any would be intruders. With 8MP ultra HD resolution and warm LED lights providing full colour image at night, this camera will not only deter but capture critical incidents around your property.
- Max. 8MP(3840×2160) @ 25fps resolution
- Built-in IR LED and warm lights for colour night vision
up to 30m - Audio and red/blue strobe light alarm to deter intruders
- Supports human and vehicle detection
*note: face detection is not the same as face recognition. Face detection tells you if a face is there, while face recognition tells you who the person is.
- Intelligent analytics: intrusion, single line crossing, double line crossing, loitering, wrong-way, illegal parking, people counting and smart motion detection
- Built-in microphone and speaker
- Built-in SD card slot
- IP66
| Camera | |
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| Max. Resolution | 8MP (3840×2160) |
| Viewing Angle | 120º Horizontal |
| Electronic Shutter | Auto/Manual, 1/5 to 1/20,000s |
| Min. illumination | Color: 0.01 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0˚ to 355˚, Tilt: 0˚ to 80˚, Rotation: 0˚ to 360˚ |
| Lens | |
| Lens Type | Fixed focus |
| Iris | Fixed Iris |
| Focal Length | 2.8 mm |
| F Number | F1.6 |
| Angle of View | H: 109.5°, V: 59.8° |
| DORI | |
| Detect | 84.2 m (276.2 ft) |
| Observe | 33.7 m (110.6 ft) |
| Recognize | 16.8 m (55.1 ft) |
| Identify | 8.4 m (27.6 ft) |
| Illuminator | |
| Type | IR, Warm light |
| Distance | IR distance up to 30m (98.4ft) Warm light distance up to 20m (65.6ft) |
| On/Off Control | Auto/Manual |
| Video | |
| Streaming Capability | 3 Streams |
| Stream/Frame Rate | Stream1: 3840×2160, 2880×1620, 2592×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720 @25fps Stream2: D1, VGA, CIF @ 25fps Stream3: VGA, CIF, QVGA @ 25fps (Enable WDR is 20fps) |
| Bit Rate Control | CBR/VBR |
| Bit Rate | Stream1: 200Kbps to 16Mbps Stream2: 100Kbps to 6Mbps Stream3: 100Kbps to 3Mbps |
| Region of Interest | Off/On (8 areas, Rectangle) |
| Smart Encode | Support |
| Audio | |
| Compression | G.711, RAW_PCM |
| Bit Rate | 64Kbps (G.711), 128Kps (RAW_PCM) |
| Image | |
| Image Adjustment | Brightness, Sharpness, Contrast, Saturation adjustable |
| Aisle Mode | Support |
| Mirror | Support |
| White Balance | Auto/Manual |
| Day/Night Setting | Auto, Day, Night, Time |
| Smart Illumination | Support |
| Noise Reduction | 2D/3D DNR |
| Image Enhancement | HLC, BLC, Defog |
| Wide Dynamic Range | True WDR |
| S/N Ratio | 55dB |
| Motion Detection | Support |
| Privacy Masking | 4 areas |
| Smart Function | |
| Multi-Object Detection | Supports human and vehicle detection |
| Intelligent Analytics | Intrusion, Single line crossing, Double line crossing, Loitering, Wrong-way, Illegal parking and Smart motion detection Support alarm triggering by specified target types (human and vehicle) |
| People Counting | Support |
| Smart Alarm | When an alarm is triggered, red and blue lights will flashing activate to warn the intruder. |
| Basic Events | Disk alarm, Network alarm, I/O alarm, Motion detection alarm, Abnormal sound detection |
| Network | |
| Protocols | IPv4/IPv6, RTSP/ RTCP/RTP, TCP/UDP, HTTPS, DHCP, DNS, DDNS, PPPoE, UPnP, ICMP, IGMP, FTP, NTP, SMTP, 802.1x, SNMP |
| Interoperability | ONVIF, SDK, CGI |
| Streaming Method | Multicast |
| Max. User Access | 10 Users |
| Web Viewer | <IE11, Chrome, Firefox, Microsoft Edge |
| Language | English, Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian. Default: English |
| Interface | |
| Network Interface | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
| Built-in Microphone | Support |
| Built-in Speaker | Support |
| Reset Button | Support |
| SD Card Slot | Built-in, up to 512GB |
| Electrical | |
| Power Supply | DC12V (-15% to +25%)/PoE (IEEE 802.3af) |
| Power Consumption | 2W (IR OFF), Max 7.5W (IR ON) |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F ) |
| Operating Humidity | Less than 90% RH |
| Ingress Protection | IP66 |
| Certifications | CE/FCC |
| Casing | Metal + Plastic |
| Dimensions | φ111 × 100.8mm (φ4.37″ × 3.97″) |
| Net Weight | 0.45 kg (0.99 lb) |
